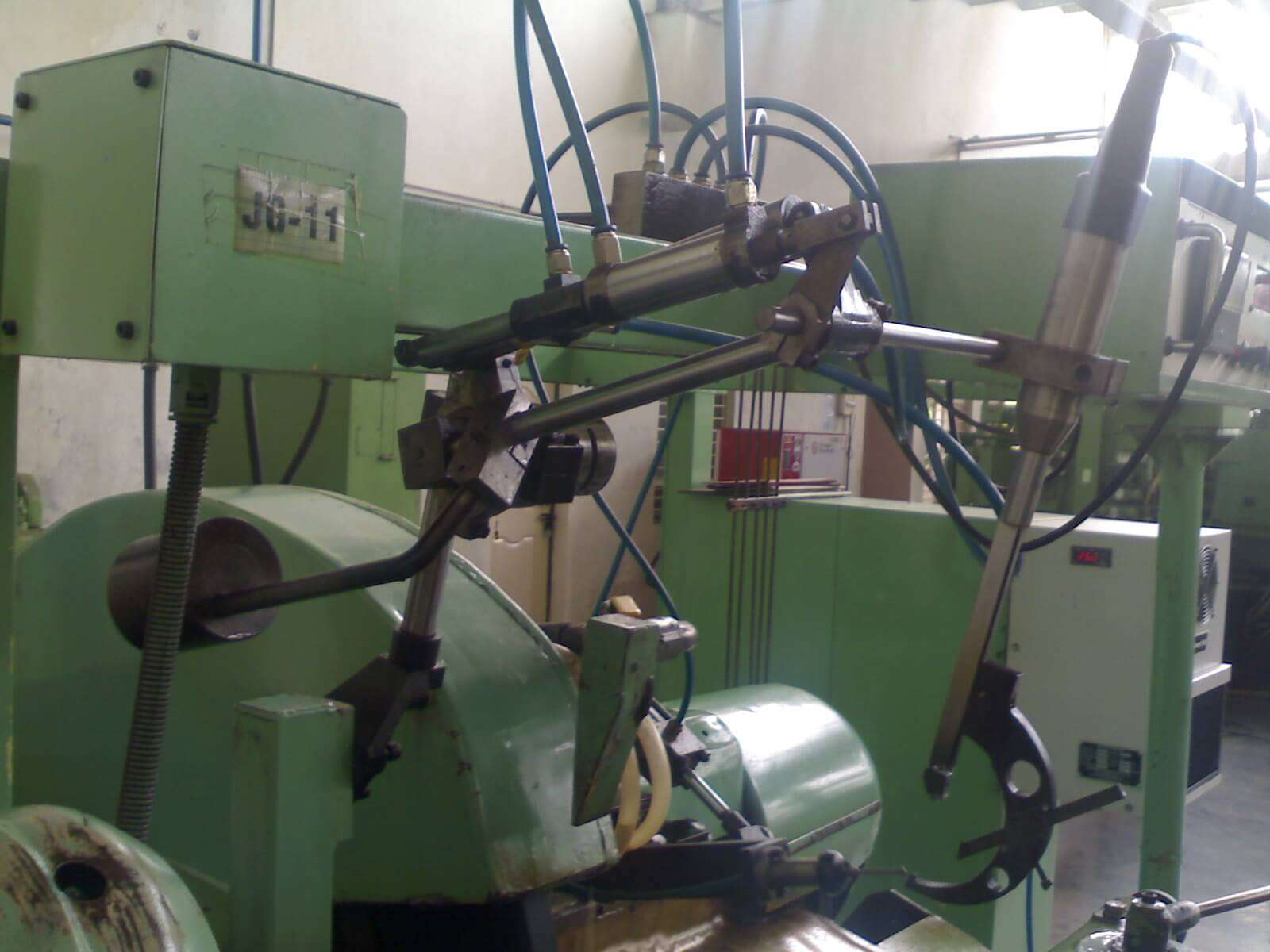

HYDRAULIC - SWING ARM GAUGE

• The unit should be mounted within easy reach and sight of the operator but should not be within "splash" distance of the coolant.
• In case a mounting stand is not already available, suitable types can be offered on enquiry.
• Determine the power supply voltage and ensure that this is 230 volts. 50 cycles/second frequency.
• Plug the spin socket at the rear of the Electronic Unit and suitably terminate the other end to the main supply.
• To mount the Gauge and Suspension Unit to the wheel head housing proceed as under.
