PRODUCTS |& SERVCICES

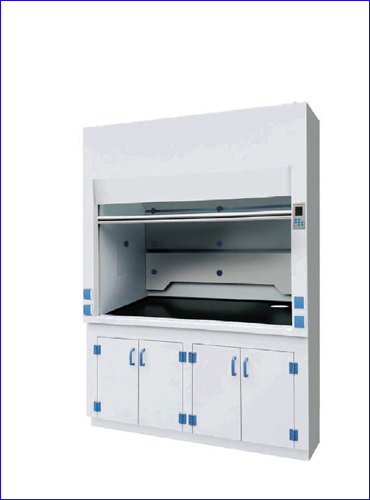

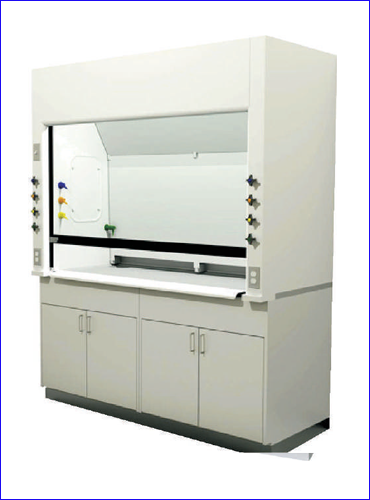

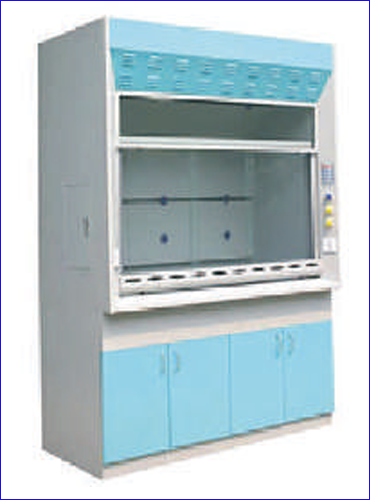

FUME HOODS

FUME HOOD BAFFLES

A Stables, non adjustables, removable baffle system with three fixed horizontal slots aids in disturibing the flow of air and through the hhood. the baffle is spaced out 2-1/4 " from the back liner.

FUME HOOD DUCT
To Ensure durabliltiy the fume Hood Duct is constructed with 200MM Dia 4 mm thick rogid FRP pipe of height 10' with suitable rain hood
Bottom Arrangement
3feet height table made out of 18 SWG Electro -Galvanized Sheet With Top Drawer . Dummy Drawer and bottom cupboard has one inner horizontal partition . All Drawers and cupboards Have Suitable Locking Arrangements and internally coated with epoxy paint
HOOD WORK SURFACE Black Granite of 20mm thickness
AMENTITIES
One Porcelain sink of size 12'* 10' with single way water tap
FUME HOOD ELECTRICAL SERVICE
Two 15/5Amps 3 pin Socket Cum control Switch , one bush type starter ,indicator lamp Fixed on the front Fascia, one 4 feet tube light for lighting Work area
? UTILITIES Seperate valves for air ,Vaccum , Nitrogen and Dampers Provided

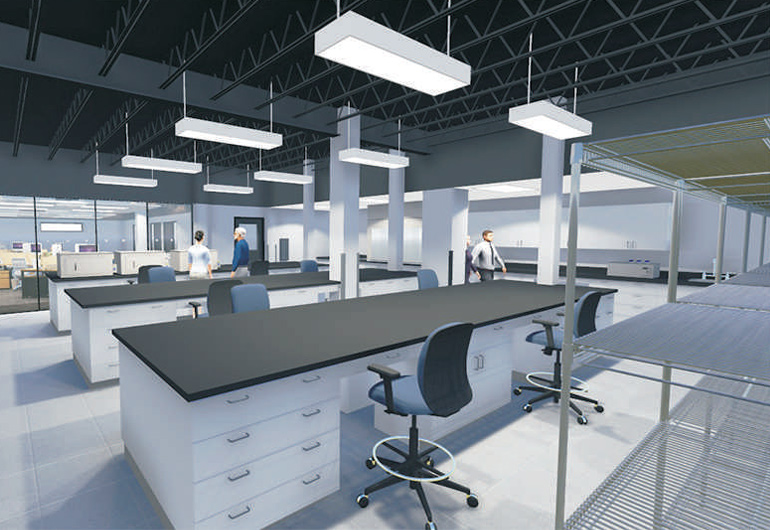

ISLAND TABLES

Our largest selling product with high tensile strength. Designed to withstand a load of 500 kg per 300 square cms. Created using 18 SWG Electro - Galvanized Sheet with square structure of 40 x 40 mm. Continuously modular, Island Tables with top drawer and bottom cupboard of removable and accessible type on both sides with knee space ensure maximum working and strogae space..

INBUILT FEATURES :

One Reagent Rack of standard size 900 x 300 x 750 (L x W x H in mm) made out of 2 tier steel partition with tray. Two 15/5 Amps 3 pin electrical socket. Porcelain Sink (18” x 12”) with 3 way water tap.
